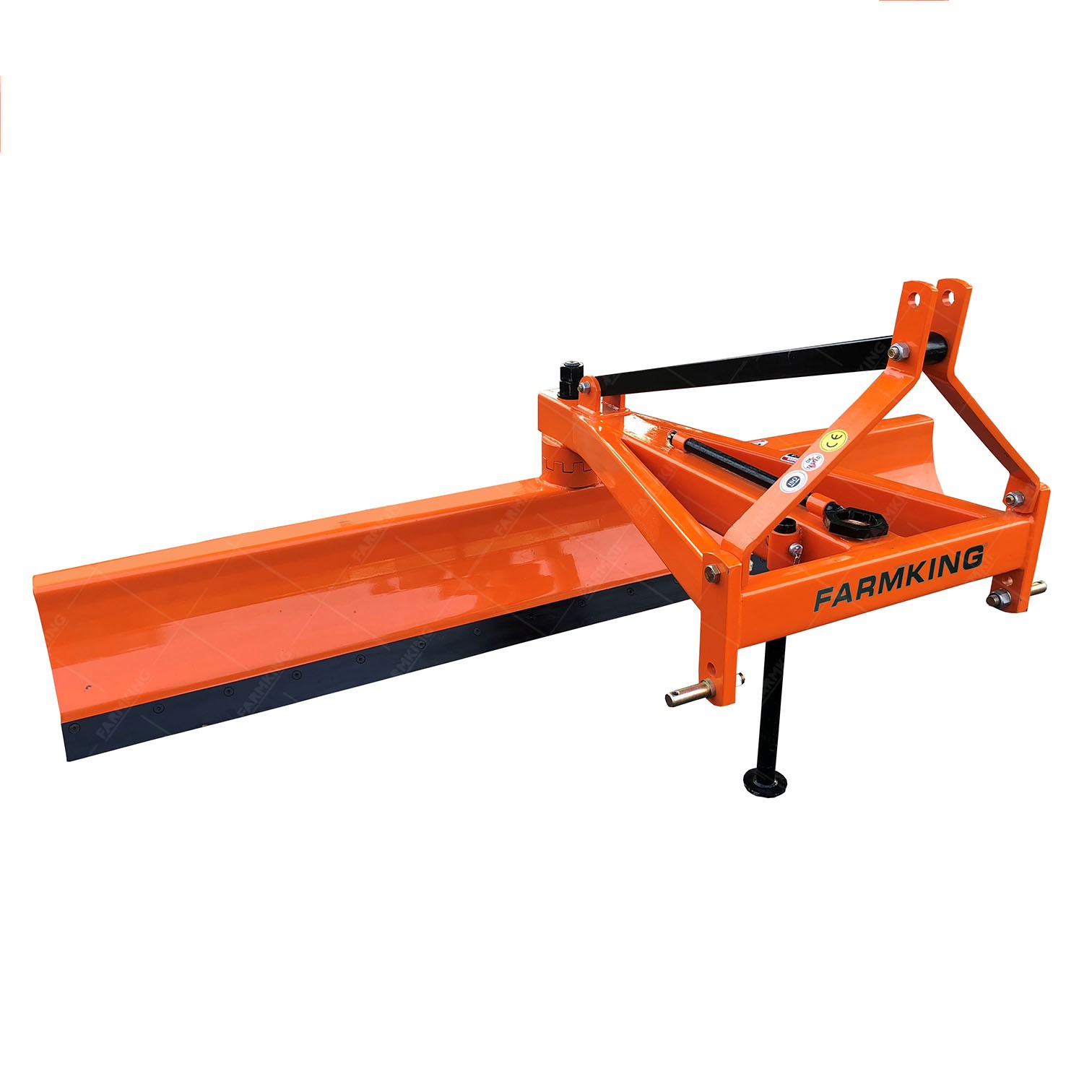

Terracer Blade
- FARMKING Terracer Blade is a 3-point linkage implement designed for landscaping, site maintenance, gardens, cattle farms, and other earthmoving applications. Available in sizes from 5 ft to 9 ft.
- Ideal for field clearing, land levelling, grading, opening drainage channels, and filling ditches with ease.
- The blade rotates through 360° and offers 8 working positions, allowing push or pull operation with adjustable blade angles.
- Equipped with a heavy-duty wear-resistant cutting blade for efficient grading of soil, gravel, construction sites, and earthmoving applications.
- The reinforced single-profile frame construction provides exceptional strength and durability for demanding field conditions.
- Comes with a sturdy parking stand for convenient storage, transport, and hitching.
Power required
35 - 60 H.P.
Working Width
5 - 10 ft
Working Angle
8 positions
Weight Range
200 - 380 Kg
Terracer Blade
| Measure | FK-LL6 | FK-LL7 | FK-LL8 |
|---|---|---|---|
| Frame (mm) | Single Profile 6 mm | Single Profile 8 mm | |
| Working Width (mm / Inches) | 1850 / 72.8" | 2150 / 84.6" | 2450 / 96.5" |
| Mould Board Height (mm) | 457 / 18" | ||
| Blade (mm) | 100 × 10 mm, Reversible | ||
| Three Point Hitch | CAT – II | ||
| Rotation | Locked in 8 Positions, 360 Degree | ||
| Weight (Kg./Lbs.) | 240 / 528 | 278 / 612 | 350 / 682 |
| Tractor Power (H.P.) | 30 – 40 | 40 – 50 | 50 – 60 |
The company reserves absolute rights to modify the specifications of the machine and components therein without any prior notice.
Accessories shown are not a part of standard equipment.
