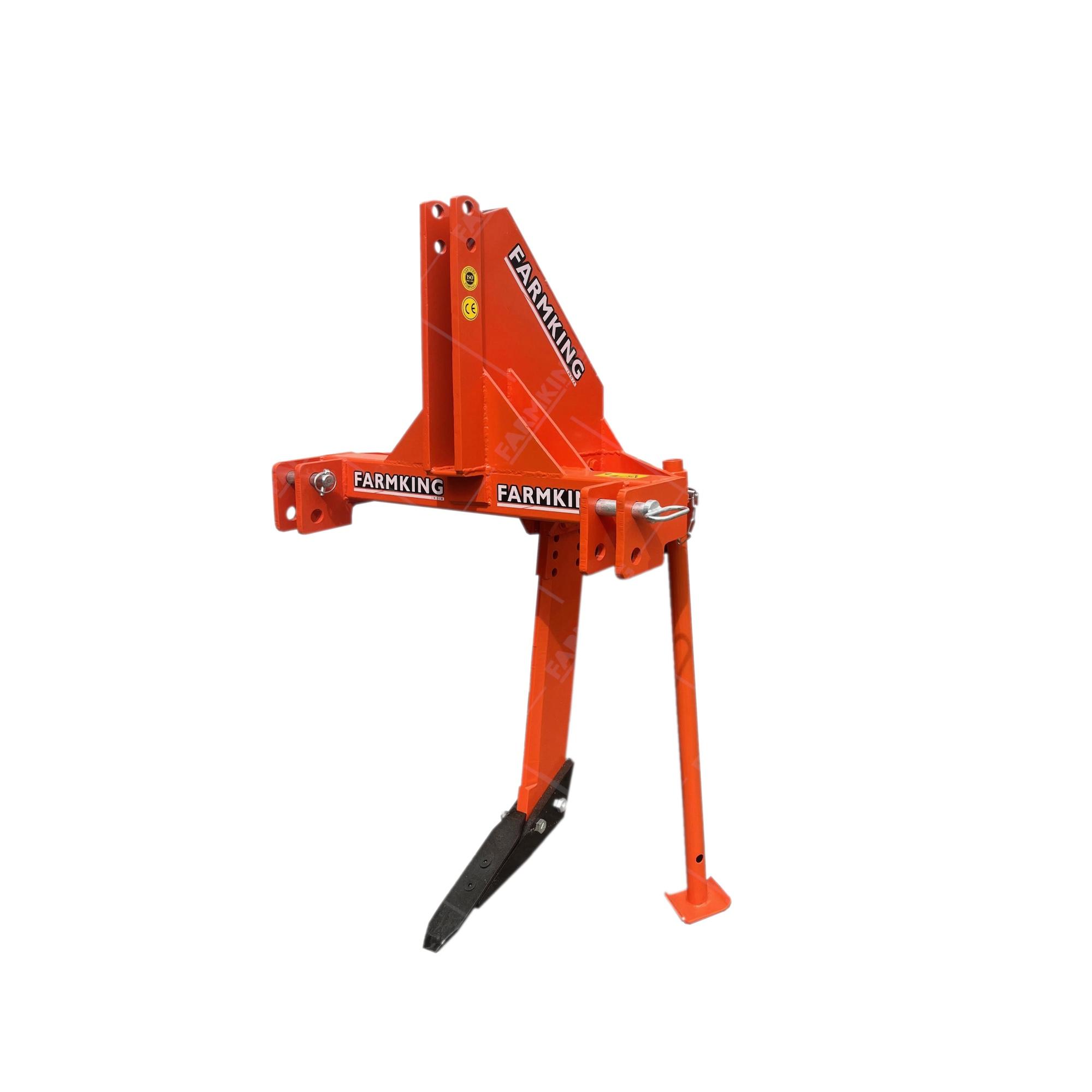

Sub Soiler / Chisel Plough

FARMKING Sub Soiler penetrates up to 22 inches deep, breaking hardpan layers to improve water drainage and promote deeper, healthier root growth.
Enhances vertical root development by allowing better movement of air and water into the deeper layers of the soil.
Constructed from high-strength steel for reliable performance in fields with stones, roots, and other underground obstructions.
High underframe clearance ensures smooth and efficient operation in fields with heavy crop residue and high trash conditions.
FARMKING Sub Soiler loosens deep soil layers without turning the soil over, improving aeration at the root zone while preserving the topsoil structure.

Measure	FKSS – 1B	FKSS – 2B	FKSS – 3B
Overall Dimensions (L × W × H) mm	510 × 660 × 1370	550 × 1220 × 1370	830 × 1520 × 1370
Working Width (mm / Inches)	70 mm	700 mm	1060 mm
Working Depth (mm / Inches)	560 / 22" Max

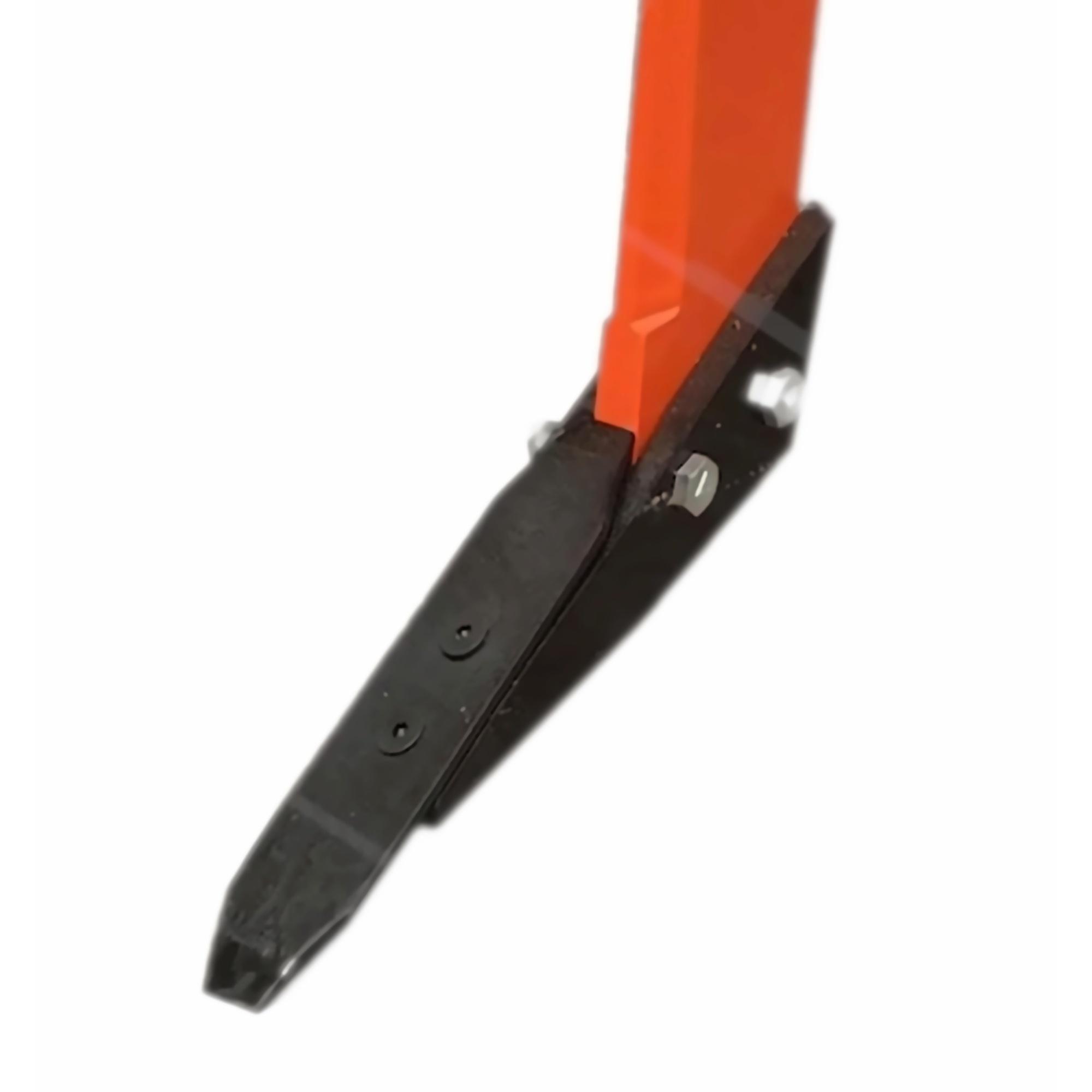

Chisel	Heavy Duty, Wear-resistant

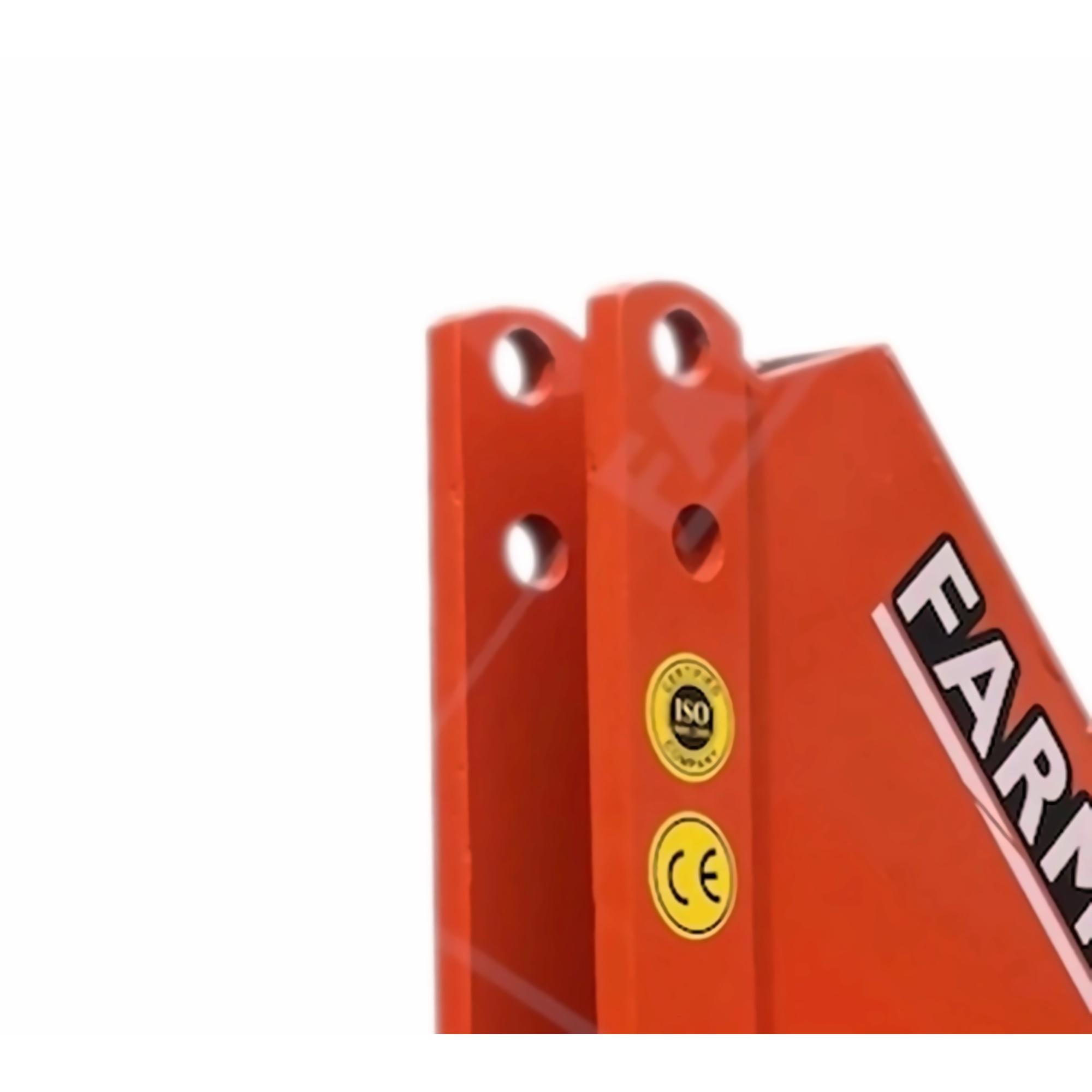

Three Point Hitch	CAT – II
Tyne (mm / Inches)	Single Piece W – 150 mm / 6", T – 25 mm
Weight - 4S (Kg./Lbs.)	85 / 187	190 / 418	290 / 638
Tractor Power (H.P.)	35 – 50	50 – 75	75 – 90

The company reserves absolute rights to modify the specifications of the machine and components therein without any prior notice.

Accessories shown are not a part of standard equipment.
