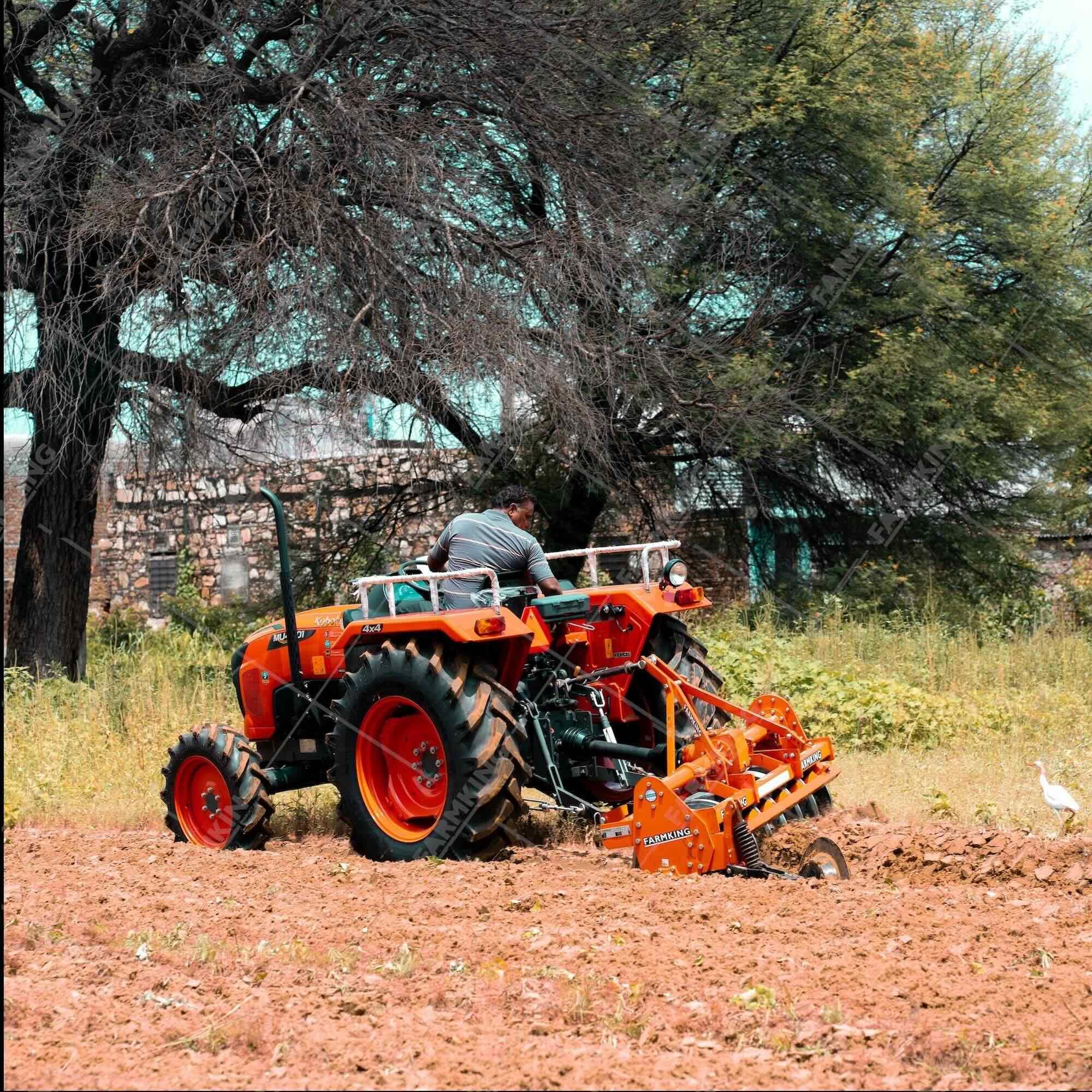

Rotary Disc Harrow

Driven by the tractor's PTO, the Rotary Disc Harrow delivers efficient soil cutting and fast, uniform land preparation for improved field productivity.
Heavy-duty Boron Steel Discs penetrate deeper into the soil, breaking clods and incorporating crop residues to create a fine, well-prepared seedbed.
Efficient PTO power transmission maximizes tractor performance, reducing fuel consumption and operating costs while increasing field capacity.
Fast and efficient soil preparation minimizes manual effort, saves valuable time, and reduces dependency on labor.
Uniform disc action improves soil aeration, water infiltration, and nutrient mixing, enhancing soil fertility and promoting healthier crop growth.

Rotary Disc Harrow

Measure	FKPDH-5D	FKPDH-7D	FKPDH-9D
Tillage Width (mm)	1050	1350	1700
No. of Discs	5	7	9
Transmission	Gear Drive
Gang Axle	76 mm Tube
Scrapper	Adjustable
Disc Diameter (mm)	610 mm / 24"
Disc Spacing (mm / Inches)	250 mm / 10"
Type of Disc	Plain Disc, Boron Steel
Coulter	Pivotable - Spring Loaded with Scrapper
Approx. Weight (Kg./Lbs.)	500 / 1012	570 / 1256	690 / 1521
Tractor Power (H.P.)	30 - 40 HP	40 - 55 HP	55 - 75 HP

The company reserves absolute rights to modify the specifications of machine and components therein without any prior notice.

Accessories shown are not a part of standard equipment.

Available in Various Disc configurations. Contact for more details
