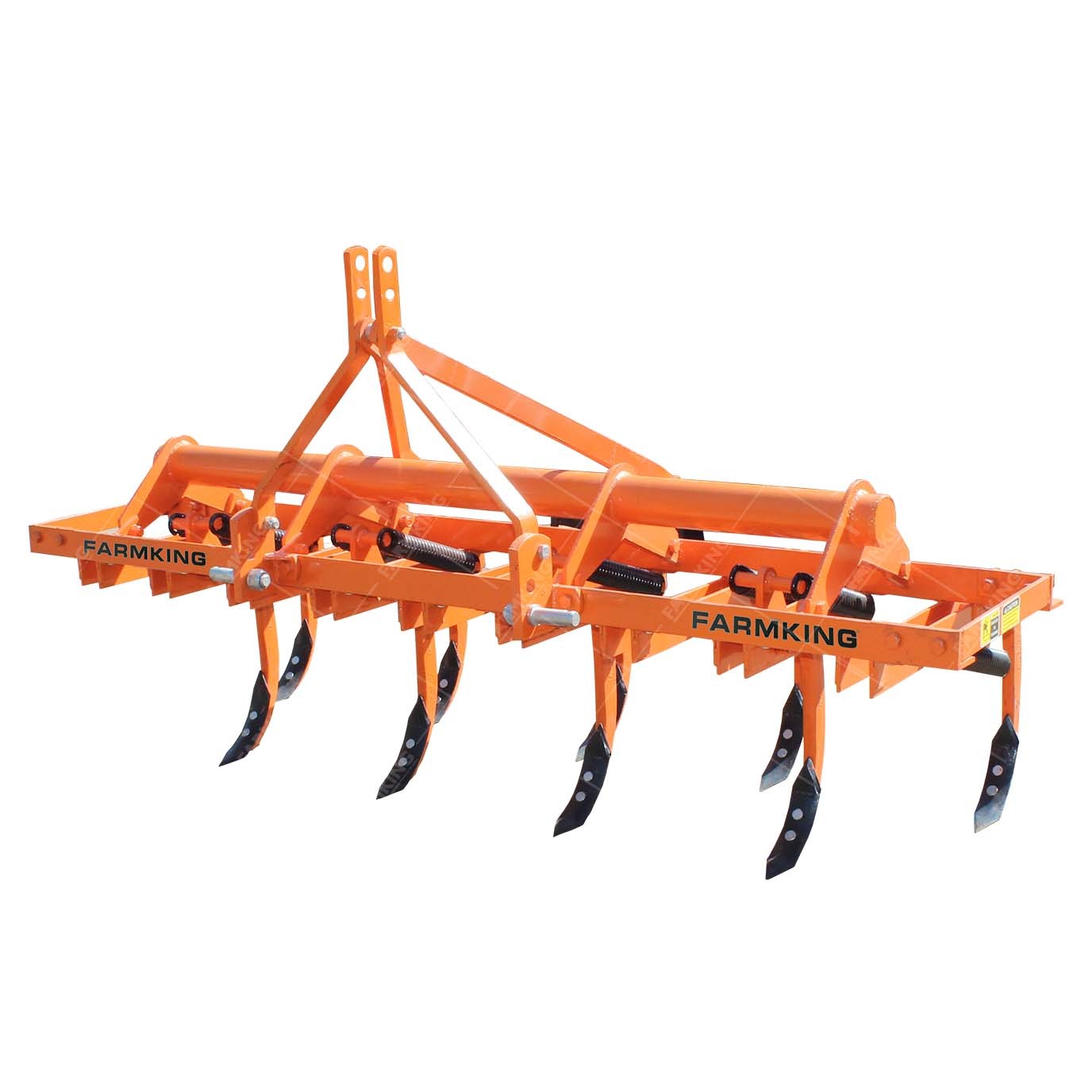

F Type Tiller

FARMKING F Type Heavy-Duty Spring Cultivator is specially designed for aerating the soil and breaking hardpan and stone-obstructed fields with ease.
The heavy-duty frame, constructed with 10 mm thick structural angles and a robust 90 mm square tube, provides exceptional torsional strength and durability.
It features a pin-to-pin spring arrangement mounted on heavy-duty carbon flat pairs, ensuring maximum strength and long-lasting performance.
The maintenance-free spring mechanism allows the tyne to automatically return to its original position after striking stones or other underground obstructions.
Effectively loosens the soil while incorporating compost and organic matter up to a working depth of 10 inches, improving soil health and productivity.
The standard multi-hole frame allows easy adjustment of tyne-to-tyne spacing (8", 9", or 10") to suit varying crop residue and field conditions.

F Type Tiller

Measure	FKSLC9 – F	FKSLC11 – F	FKSLC13 – F
Overall Dimensions (L × W × H) mm	920 × 2180 × 1020	920 × 2440 × 1020	920 × 2900 × 1020
Working Width (mm / Inches)	1830 / 72"	2290 / 90"	2745 / 108"
Construction (mm / Inches)	Main Frame 65 × 65 × 10 mm / 2.55" × 2.55" × 0.4" Heavy Duty Angle; Tyne Pair – Flat Type
Spring Dimensions (mm)	10 mm Wire Diameter, 50 mm Outer Diameter
Tyne to Tyne Distance (mm / Inches)	Adjustable: 203, 229, 225 mm / 8, 9, 10 Inches
Shovel (mm)	8 mm - Reversible
Three Point Hitch	CAT – II
Tyne Dimensions (mm / Inches)	W - 50 / 2" × T - 25 / 1"
Weight (Kg./Lbs.)	276 / 608	320 / 704	385 / 847
Tractor Power (H.P.)	40 - 50	50 - 65	60 - 75

The company reserves absolute rights to modify the specifications of machine and components therein without any prior notice.

Accessories shown are not a part of standard equipment.
