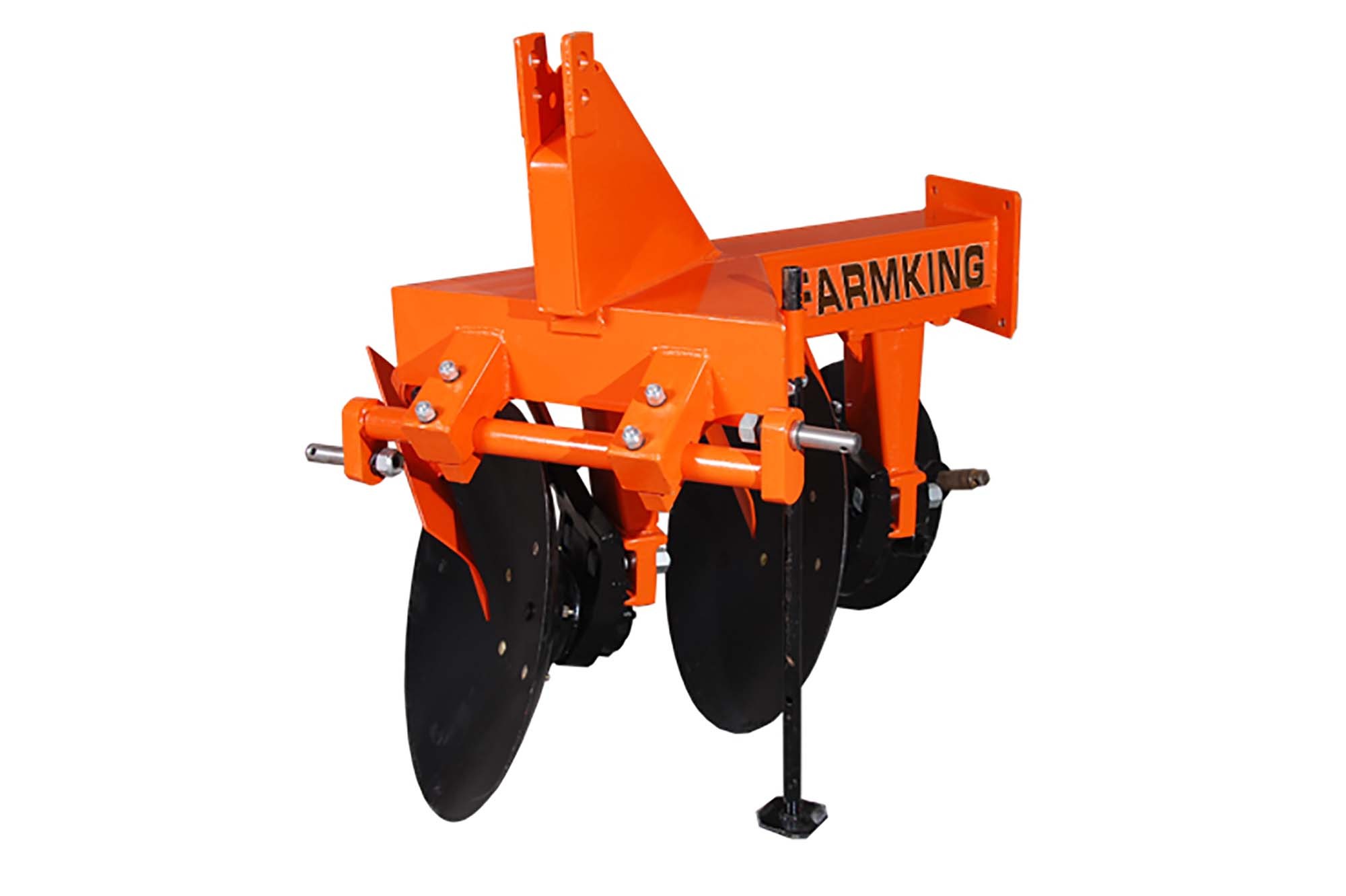

Disc Plough - MF Type

MF Type Disc Plough is designed for opening new fields and is available in 2, 3, 4, and 5-bottom configurations to suit different tractor capacities and farming requirements.
Suitable for medium to hard soils such as red and black soils, it performs soil turning, raising, and mixing efficiently for effective land preparation.
The heavy-duty fabricated square frame offers exceptional strength, durability, and reliable performance under demanding field conditions.
A standard adjustable cross shaft allows easy adjustment of the working depth to match varying soil and crop requirements.
The uniquely engineered Heavy-Duty Hub is built to withstand the toughest operating conditions, ensuring long service life and dependable performance.
High underbody clearance enables smooth operation in heavy trash, crop residue, and stubble-covered fields without clogging.

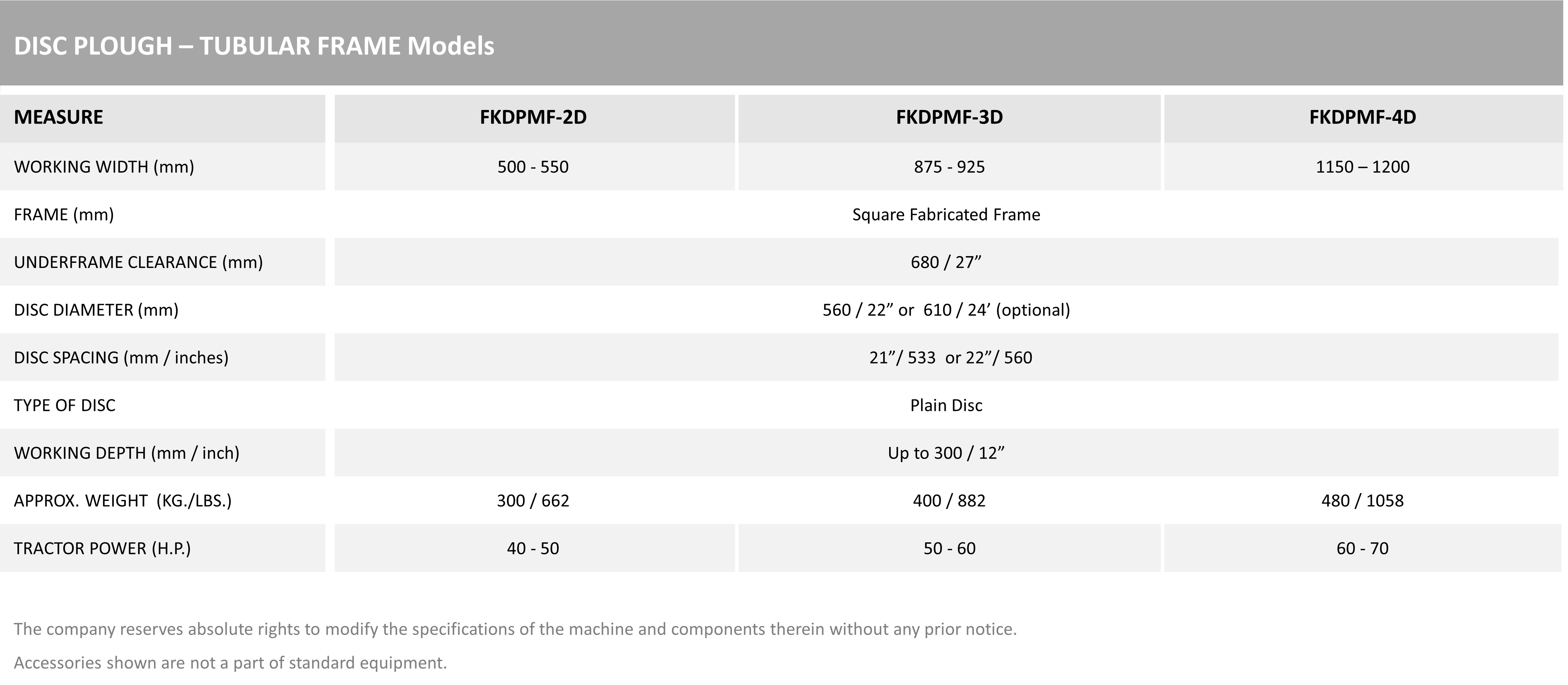

Measure	FKDPMF-2D	FKDPMF-3D	FKDPMF-4D
Working Width (mm)	500 - 550	875 - 925	1150 - 1200
Frame (mm)	Square Fabricated Frame
Underframe Clearance (mm)	680 / 27"
Disc Diameter (mm)	560 / 22" or 610 / 24" (Optional)
Disc Spacing (mm / Inches)	21" / 533 or 22" / 560
Type of Disc	Plain Disc
Working Depth (mm / Inch)	Up to 300 / 12"
Approx. Weight (Kg./Lbs.)	300 / 662	400 / 882	480 / 1058
Tractor Power (H.P.)	40 - 50 HP	50 - 60 HP	60 - 70 HP

The company reserves absolute rights to modify the specifications of machine and components therein without any prior notice.

Accessories shown are not a part of standard equipment.

22 inch or 24 inch or 26 inch

Scrapper for discs

Extra furrow kit
